PRO MPA II
2-Channel Tube Preamp

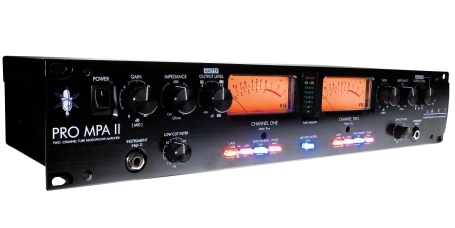

The Pro MPA II is a two-channel preamp with streamlined controls and real tube tone in a 2U rackmount enclosure.
It has 40 dB of input gain and a 20 dB boost, so it’s a great choice for low-output microphones. The plate voltage is switchable between normal operation for classic tube saturation, and high voltage for increased headroom and bandwidth. Variable impedance lets you tailor the response of the preamp to your microphone for additional tonal flexibility. It also features a variable low cut filter to eliminate rumble and tighten bass, and switches for phantom power phase reversal, and stereo or dual mono operation.
Unique among ART preamps, the Pro MPA II has a Mid/Side matrix for additional flexibility when recording stereo sources. For more information about this technique, check out this great overview from Sound On Sound.
A VU meter shows the output level, while a Tube Warmth LED meter shows the signal levels before they're affected by the Output volume control.

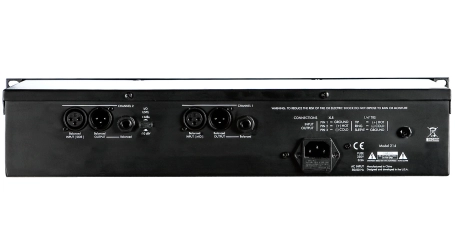

The rear panel has XLR mic inputs and both XLR and 1/4” line outputs per channel, and the front panel has 1/4” instrument inputs for using the Pro MPA II as a dual tube DI.
Extend your recording setup with a versatile character preamp that offers two channels of classic tube warmth.
Need digital connectivity? Check out the Digital MPA II.
Features
- Variable Input Impedance For Flexible Microphone Voicing (150 ohms To 2400 ohms)
- Selectable Plate Voltage
- Large VU Meters
- Backlit Function Switches
- Discrete Class-A Input Microphone Preamplifier
- Low Noise at Lower Gain Settings
- Extremely Low Total Harmonic Distortion (THD)
- Wide Frequency Response
- Additional Front Mounted Instrument Input Jack
- Supports Mid/Side Miking Technique
- Operates at +4dbm/-10dbv Output
- Selectable Stereo/Dual Operation of Output Controls
- Automatic Instrument Input Selection
Specifications
| Input Impedance | 150-3000 Ω Adjustable (XLR), > 800K Ω (Instrument) |
| Maximum Input Level | +19dBu |
| Maximum Output Level | +27dBu (XLR) |
| Maximum Gain | 75dB |
| Frequency Response | 15Hz to 48kHz (+0, -1dB) @ Normal Plate Voltage, 15Hz to 120kHz (+0, -1dB) @ High Plate Voltage |
| Total Harmonic Distortion | <0.005% (typical) |
| Equivalent Input Noise | 129dBu (XLR, “A” Weighted) |
| CMRR | > 90dB |
| Power Requirements | USA – 105 to 125 VAC / 60 Hz Export Units Configured for Country of Destination |
| Dimensions (HWD) | 3.50″ x 19.0″W x 8.75″, (8.8cm x 48.2cm x 22.2cm) |
| Weight | 10.5 lbs (4.5 kg) |
Specifications subject to change without notice
