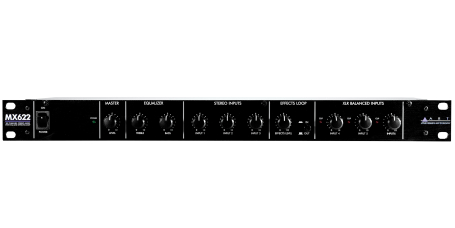

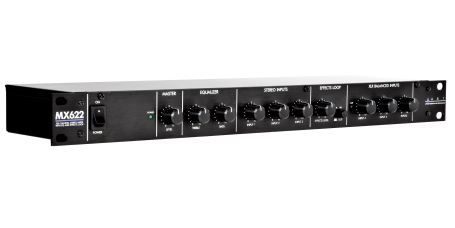

MX622
6-Channel Stereo Mixer with EQ & Effects Loops
The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix.
Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer.
The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.
Features
- Three Balanced XLR Inputs Switchable Mic/Line Level
- Three Stereo RCA Inputs with Separate Level Controls Level Control and Clip Indicators
- Selectable 15-volt Phantom Power for Mic Channels
- Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
- Versatile Two-Band Master EQ
- Separate Stereo Record Outputs
- Effects Loop with Level Independent Level Control
Specifications

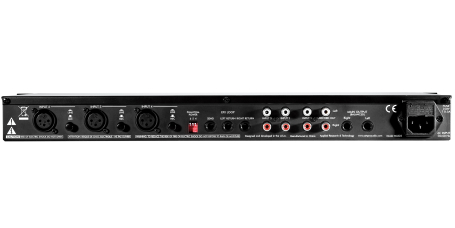

| Inputs | 3x XLR balanced 2x 1/4" unbalanced 3x pairs stereo RCA (6 total) |
| Outputs | 2x TRS balanced 1/4" 1x 1/4" unbalanced 2x RCA |
| Input Impedance | 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns |
| Output Impedance | 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output |
| Maximum Input Level | -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs |
| Maximum Output Level | +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output |
| Maximum Gain | 56dB/26dB mic/line / 26dB RCA inputs |
| Total Harmonic Distortion | .01% Typical |
| Signal to Noise Ratio | > 90dB typical |
| Phantom Power | +15Volts DC (regulated / low noise) |
| Power Requirements | USA – 105 to 125 VAC / 50-60Hz, 15 W typical |
| Dimensions (HWD) | 1.75″ x 19″ x 6.0″ (4.45 cm x 48.3 cm x 15.2 cm) |
| Weight | 6.2 lbs /2.8 kg |
Specifications subject to change without notice
